Best in Class Oven Controlled Crystal Oscillator (OCXO)

Best in Class Oven Controlled Crystal Oscillator (OCXO)

<= ± х10-9
<= ± x10-8/Year
Mhz.
3.3V
5V
12V
SIN
HCMOS
CMOS
--
20x20
20x12
25x25
25x22
27x27
36x36
41x30
36x27
49x49
51x41
49
51x51
60x67
SMD 5x7
DIL14 20x12
21x14
80x88
67x44


Model
Frequency Range (MHz)
Temp Stability
Aging per year
Supply Voltage
Output Signal
10 MHz* Phase Noise @1 Hz Offset
(dBc/Hz)
10 MHz* Phase Noise @10 kHz Offset
(dBc/Hz)
ADEV* @ 1 Sec.
Package Size
(mm)
Description/Options:
MV200 datasheet
10 to 100
±5.0x10-11
±1.0x10-8
5V
12V
SIN
HCMOS
-108
-162
<6E-13
51x51x10.0 51x51x12.7 51x51x16.0 51x51x19.0
● Low profile precision OCXO.
● Excellent temperature stability.
MV207 datasheet
5 to 20
±7.5x10-10
±2.0x10-8
5V
12V
SIN
HCMOS
-100
-160
<2E-12
36x27x12.7 36x27x16.0
● Pecision low G-sensetivity OCXO.
● Low G-sensetivity up to 5x10-10.
MV220 datasheet
10
±5.0x10-10
±3.0x10-8
12V
SIN
-100
-168
<5.0E-12
51x51x12.7 51x51x10.0
● Low phase noise precision OCXO.

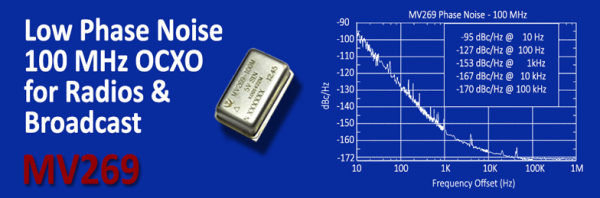

MV269M datasheet
100
±5x10-8
±1.0x10-7
5V
SIN
HCMOS
-135 @
100 Hz offset
-163 @
1 kHz offset
± 178 @
10 khz offset
DIL14
21.0x13.0x9.5
● DIL14 high frequency ultra-low phase noise OCXO.
● Microwave radio & broadcast applications.
● Wide temp' range.
MV272M datasheet
5 & 10
±1.0x10-9
±1.0x10-8
12V
SIN
-120
-168
<4E-13
41.0x30.0x16.0
● Ultra high performance, low G-sensitivity OCXO.
● Low G-sensitivity.
● ON/OFF function.

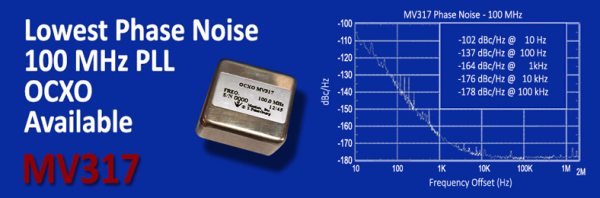

MV317 datasheet
80 to 122.76
±5.0x10-8
±1.0x10-7
5V
12V
SIN
-140
@100 Hz
offset
-165
@1 kHz
offset
±-180 @ 10 khz offet
25.8x25.8x10.3
● Miniture, high frequency low phase noise OCXO.
● Industry BEST phase noise performance for PLLs.
● Low G-sensetivity.
● Fast warm-up time up: <1 min.
MV331 datasheet
10 to 20
±2.0x10-9
±2.0x10-8
5V
12V
SIN
HCMOS
-100
-165
<2E-12
25.8x25.8x10.6
● Miniture, low profile, low noise OCXO.
MV333M datasheet
10
±3.0x10-9
±2.0x10-8
12V
SIN
-120
-170
<5E-13
25.8x25.8x12.7 36.1x27.2x16.0
● High Stability Miniture OCXO.
MV336 datasheet
5 to 10 Mhz
±4.0x10-11
±1.0x10-8
12V
SIN
-120

-125 for 5MHz ULN
-160
±1.5x10-13
92.0x80.0x50
● Ultra precision ultra short term stability OCXO.
● Industry best temp' stability.
● Analog or Digital frequency adjustment.
MV336R datasheet
10 Mhz
±2.0x10-11
±1.0x10-8
12V
SIN
-124

-125 for 5MHz ULN
-157
<7E-14
92.0x80.0x50.0
● Reference for Phase Noise and ADEV testing.
● ±300 ppm initial accuracy.
● No frequency adjustment.

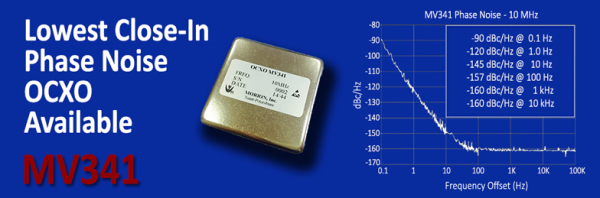

MV341 datasheet
10
±1.0x10-9
±1.0x10-8
12V
SIN
-120

-124 for 5 MHz
-167
<1.5E-13
51x51x16
● Precision Low Phase Noise Low ADEV OCXO.
● Extended Frequencies Available.
● Phase Noise: <-90 @ 0.1 Hz.
MV342 datasheet
48 to 125
±5.0x10-8
±5.0x10-7
12V
SIN
-135 @
100 Hz offset
-158 @
1 kHz offset
-170 @
10 kHz offet
26.0x26.0x10.3
● Miniture High Frequency Low Phase Noise.
● Ultra low phase noise level close to the carrier.
● Oven alarm & oscillatior ON/OFF function.
MV354 datasheet
100
±5.0x10-8
±1.0x10-7
5V
SIN
-135 @
100 Hz offset
-162 @
1 kHz offset
-178 @
10 khz offet
SMD 21.1x14.0x7.5
● Small SMD high frequemcy low noise OCXO.
● Wide temperature range.
● Fast warm-up time up: <1 min.
MV359 datasheet
10 & 100 Dual Output
±1.0x10-9
±2.0x10-8
12V
SIN
-110
" 100MHZ
-160 @
1 kHz offset"
100mhz
-175 @
10 khz offset
67.0x44.0x18
● DUAL OUTPUT MODULE.

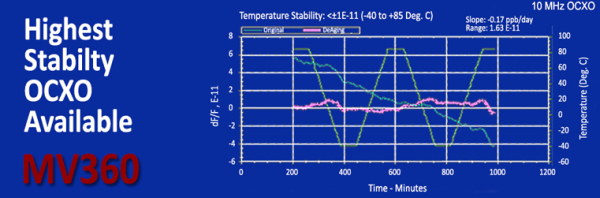

MV360M datasheet
10 Mhz
±3.0x10-11
±1.0x10-8
5V
12V
SIN
-100
-155
<1E-12
50.8x50.8x19.0
● Digital Frequency Control
● Double Oven Ultra Precision OCXO.
● Industry best temp' stability.
● 5G, Telecommunication, Test & Measurement.
MV389 datasheet
10 Mhz
±5.0x10-9
±3.0x10-8
5V
12V
SIN
-95
-173
<2E-12
25.8x25x12.7
● Low G-Sensitivity.
Low Phase Noise Miniture OCXO.
MV390 datasheet
10 to 50
±1.0x10-8
±1.0x10-8
3.3V
5V
HCMOS
-100
-170
<5E-13
21.2x15.5x10.5
● Very Small Size.
● Low Power Consumption.
● 10 to 50 MHz.

*100MHz unit phase noise as indicated.
